SWING OUTDOOR / REFERENCES
A sample you can examine.
A specification you can question.
Real sample views and construction references, with development targets kept separate from verified test results. Start with the garment; then agree the evidence your programme needs.
20D Ultralight
Packable Shell

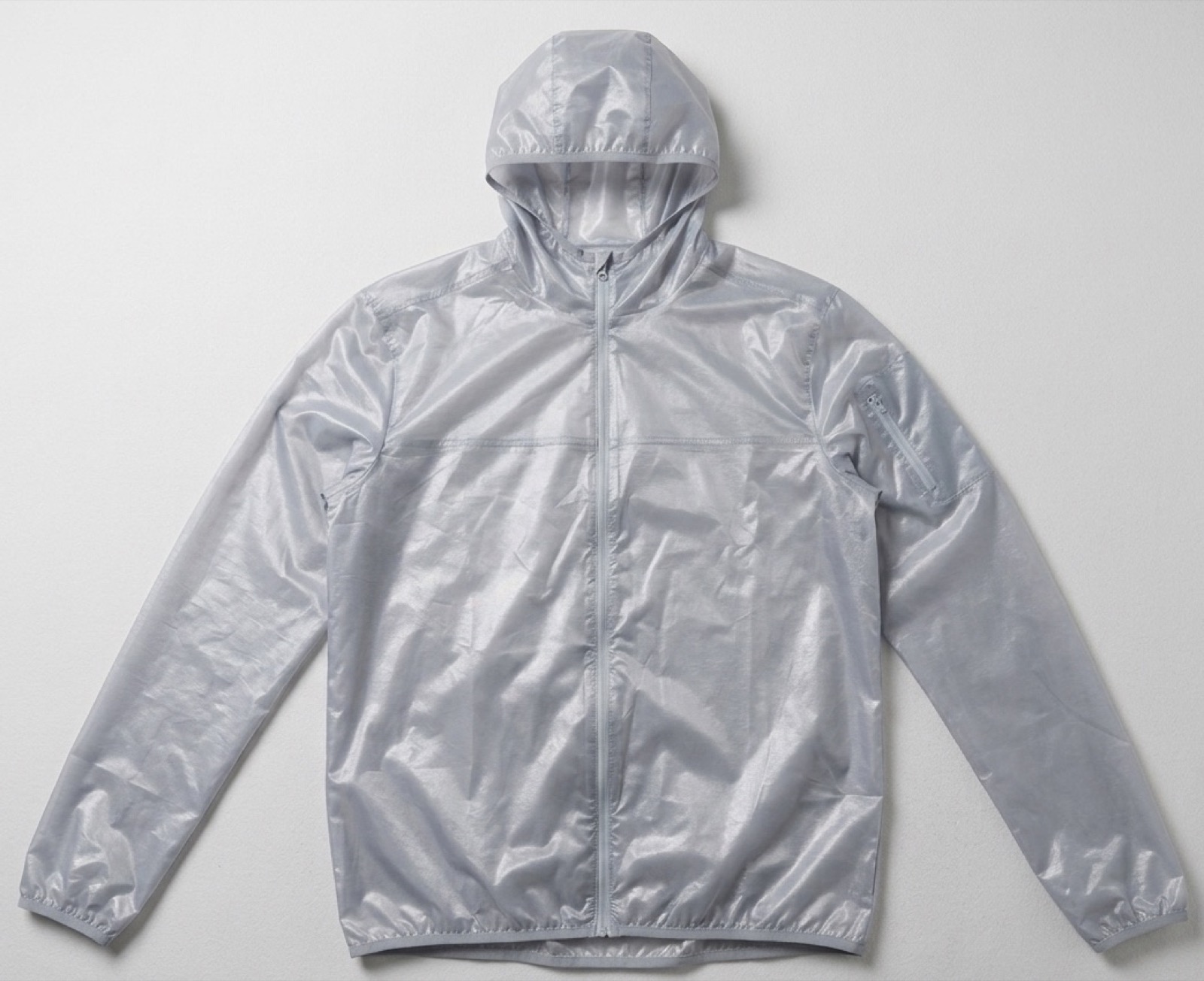

A low-weight hooded shell with a transparent TPU membrane, full seam taping and a left-sleeve pocket that holds the packed garment. The size-M sample is approximately 106 g.
Use this reference to discuss fabric transparency, pack size, trim weight and seam-tape compatibility. Production specifications must be confirmed against an approved sample.
Develop a lightweight shell →
TECHNICAL DATA / STATUS MATTERS
What is known. What needs confirmation.
| Item | Reference information | Evidence / next check |
|---|---|---|
| Fabric | 20D tricot knit + transparent TPU membrane | Supplied development specification; confirm the production fabric article. |
| Sample weight | Approximately 106 g, size M | Sample reference value; agree tolerance and production size grading. |
| Construction | Fully seam taped; bound zipper interior, hood and hem | Review sample workmanship, tape adhesion and compatibility. |

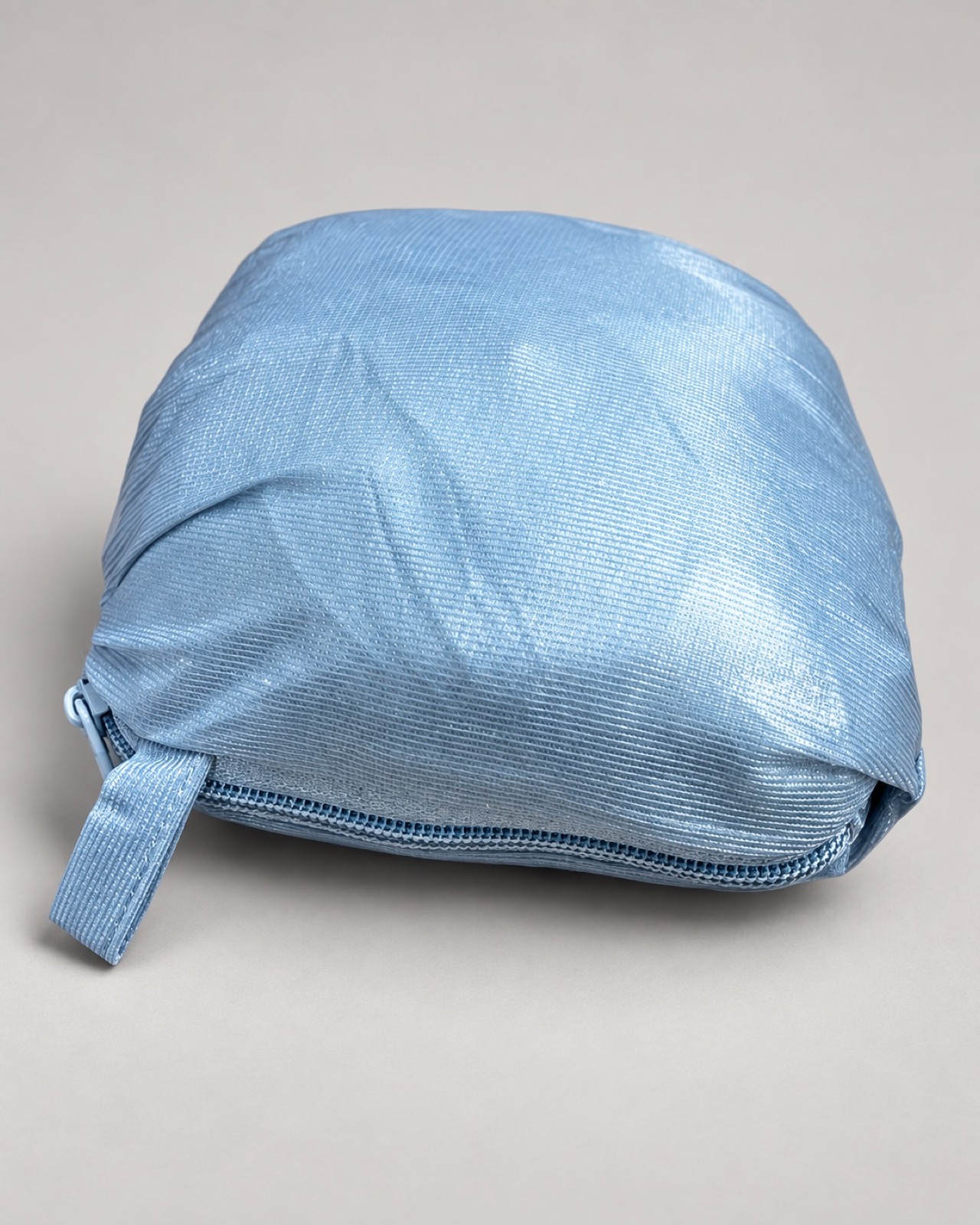

| Packability | Packs into the left sleeve pocket | Review packed dimensions and packing / unpacking on the sample. |
| Waterproof target | 10,000 mm | Development target. Test method, conditioning and report not yet confirmed. |
| Breathability target | 10,000 g/m²/24 h | Development target. Test method and approved material report to confirm. |
| Water-repellent finish | PFAS-free finish specified in the supplied development brief | Supplier declaration and applicable test evidence must be reviewed before a verified claim. |
No published performance report accompanies this reference. Photographs and enhanced illustrations do not establish waterproofness, chemical compliance or production approval.
CONSTRUCTION / CLOSE UP
Examine the details that affect development.

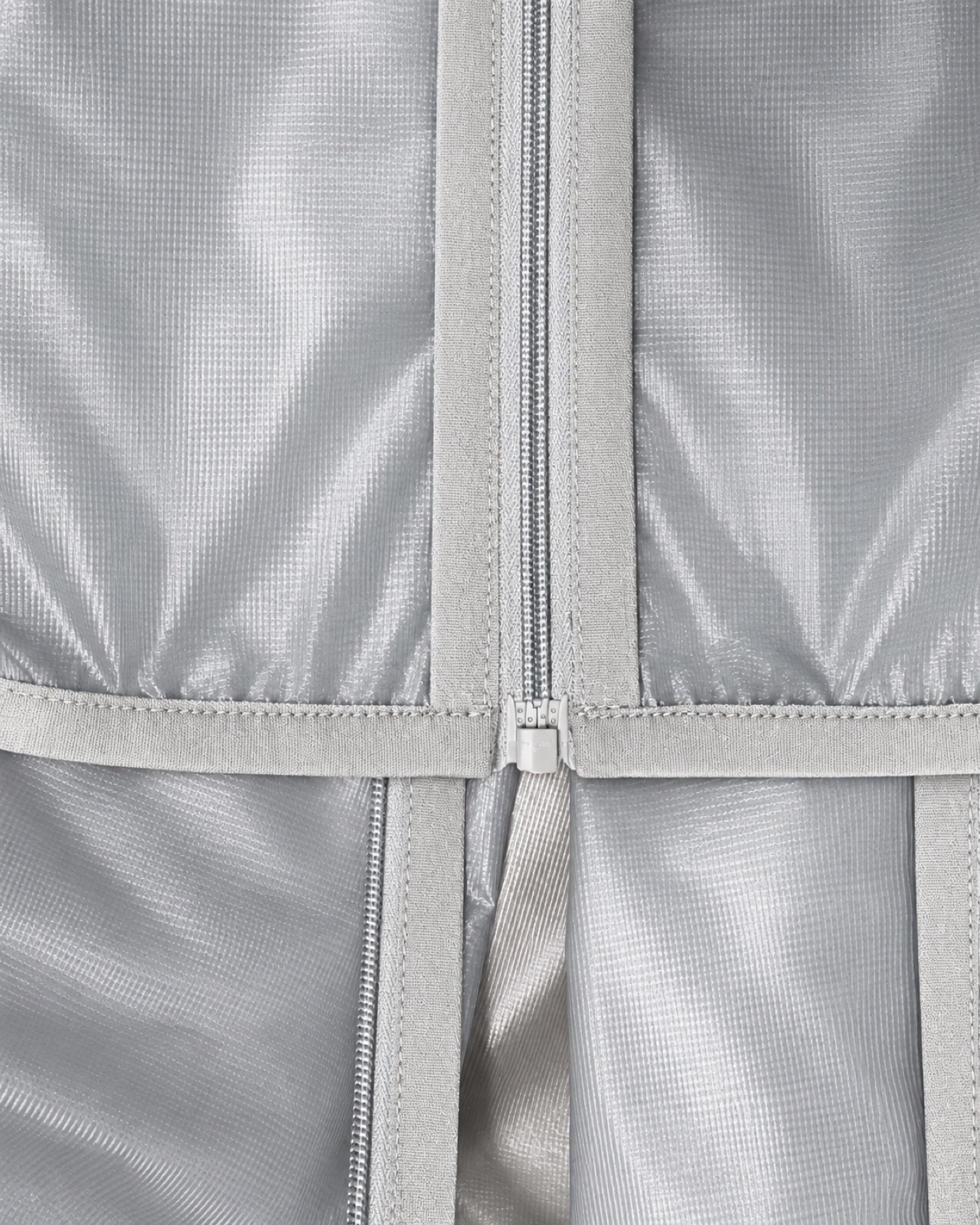

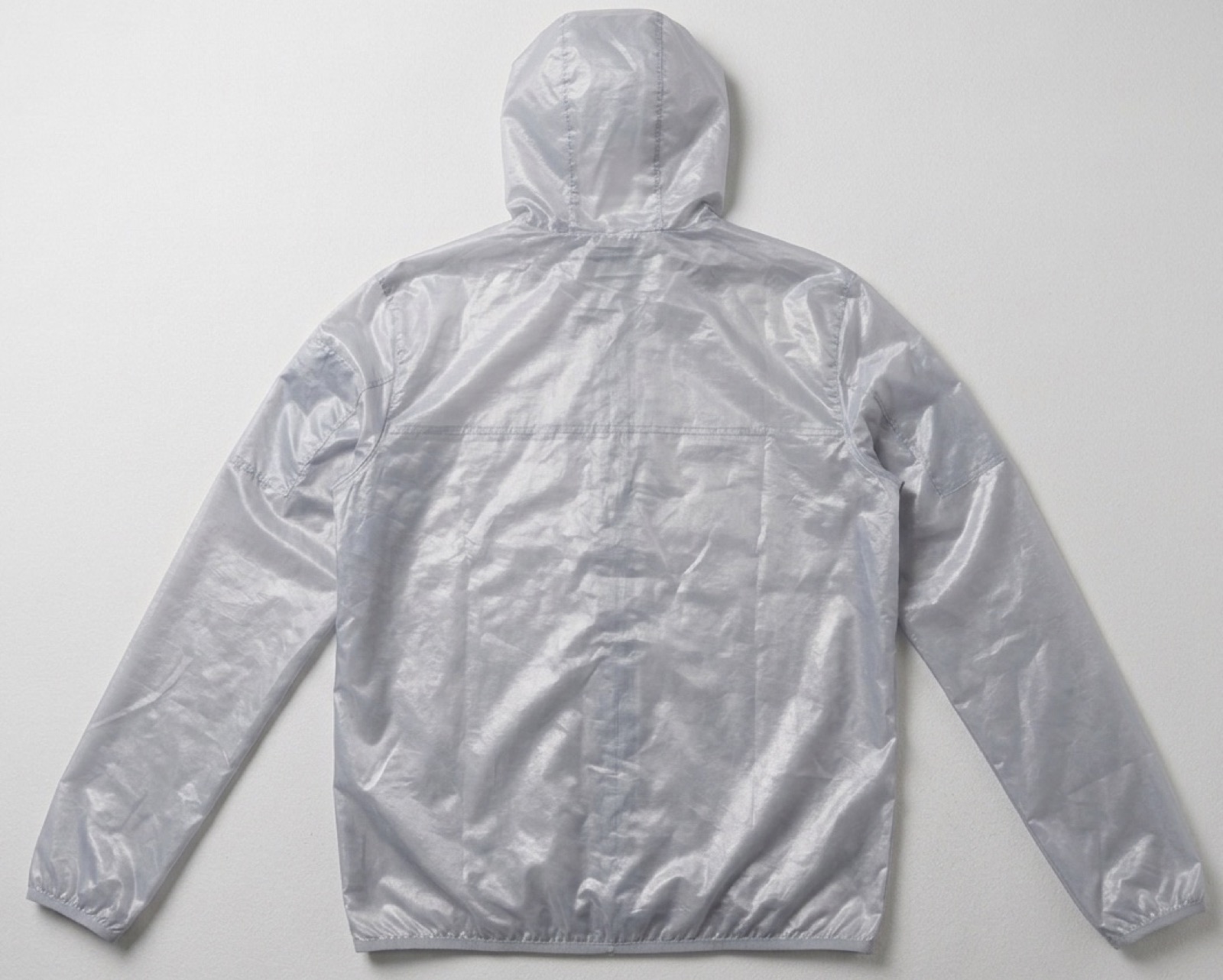

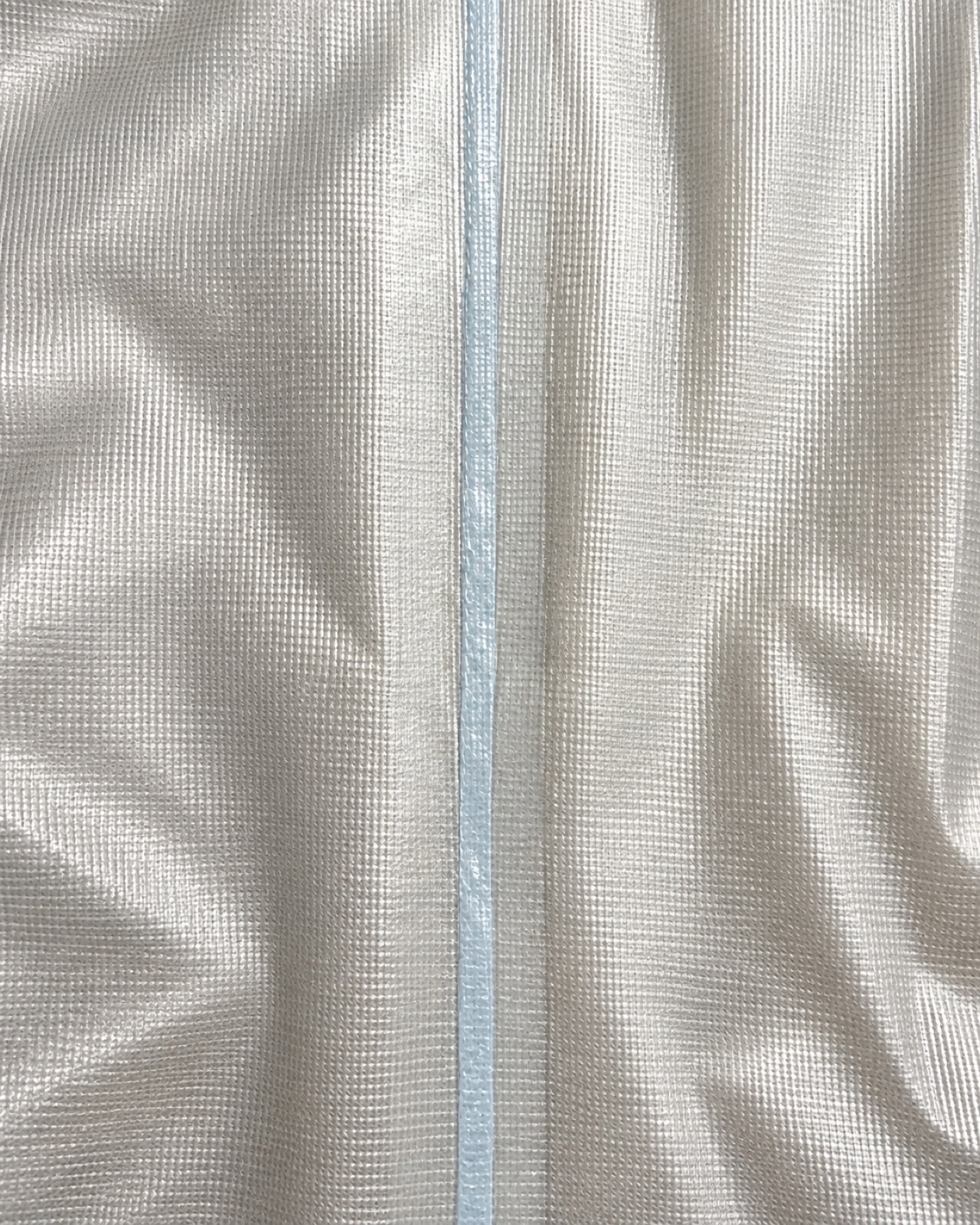

The back view is a sample photograph. The three detail images were enhanced from supplied references for presentation; request original views and a physical sample for assessment.
FIT PRESENTATION
Front and back,
in proportion.
These fit views help discuss silhouette, hood coverage and body length. They complement the sample photographs and do not replace measurements, a fit review or technical evidence.
Review the shell development programme →
ADDITIONAL SAMPLE / SW-26-SH-002
An inside view of shell construction.

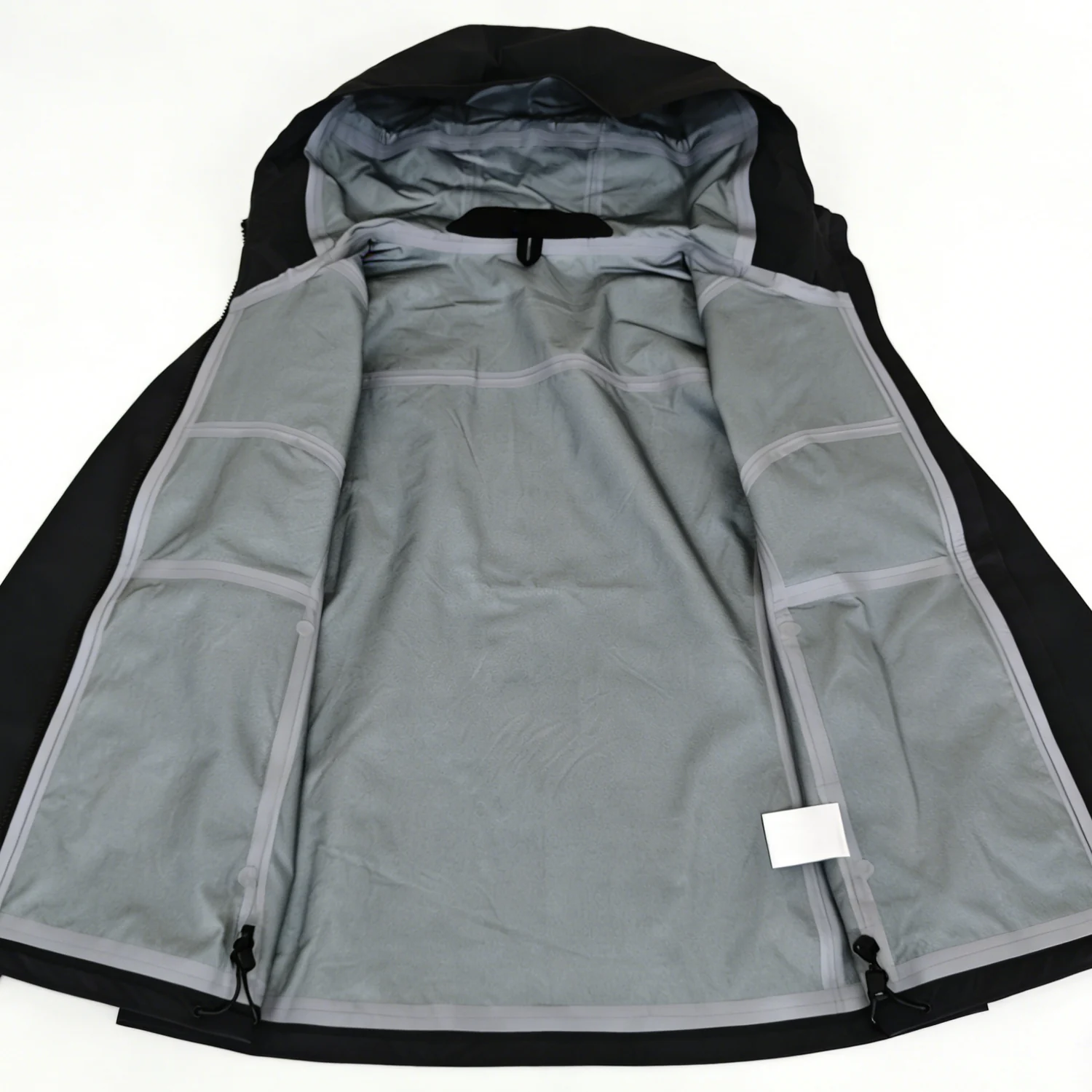

Existing SWING product photograph showing lining and taped seams. Use it to start a construction review; seam appearance alone does not establish a waterproof test result.
YOUR NEXT CHECK
Ask for evidence matched to your brief.
- Original sample photographs and construction details
- Approved fabric article and technical specification
- Test method, tested material and conditioning
- Relevant facility and document scope
These are sample references, not a completed customer case study or a claim of tested production performance.
How we review quality evidence →Start with your next outerwear project.
Share your end use, quantity and development questions. We will review the next step against your brief.
